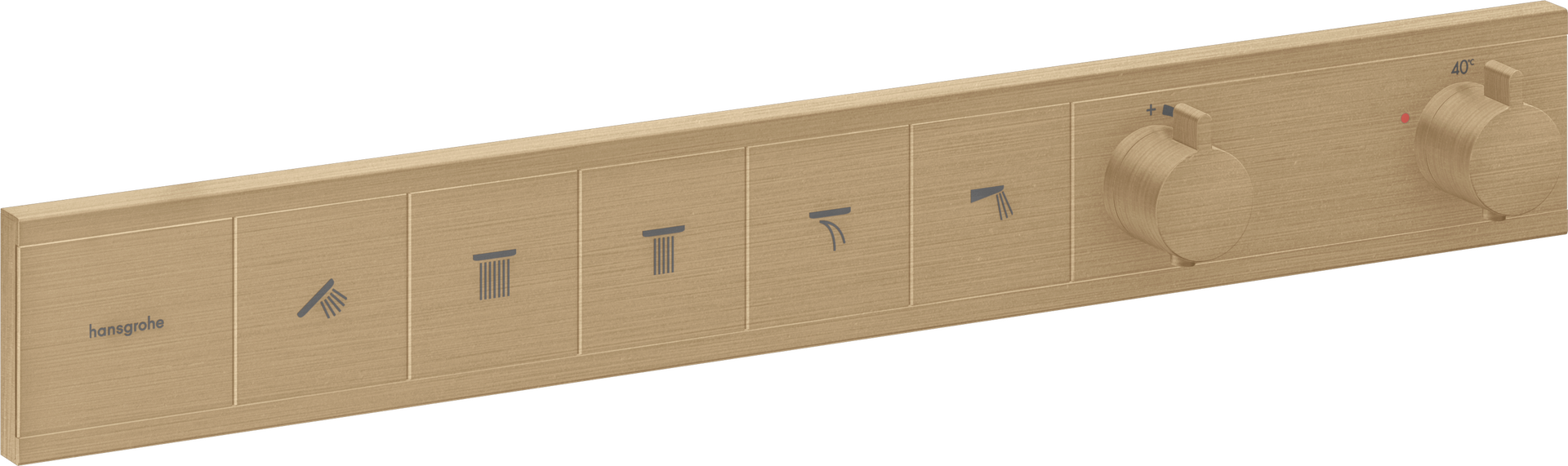

RainSelect Thermostat for concealed installation for 5 functions

Thermostat for concealed installation for 5 functions Thermostat for concealed installation for 5 functions

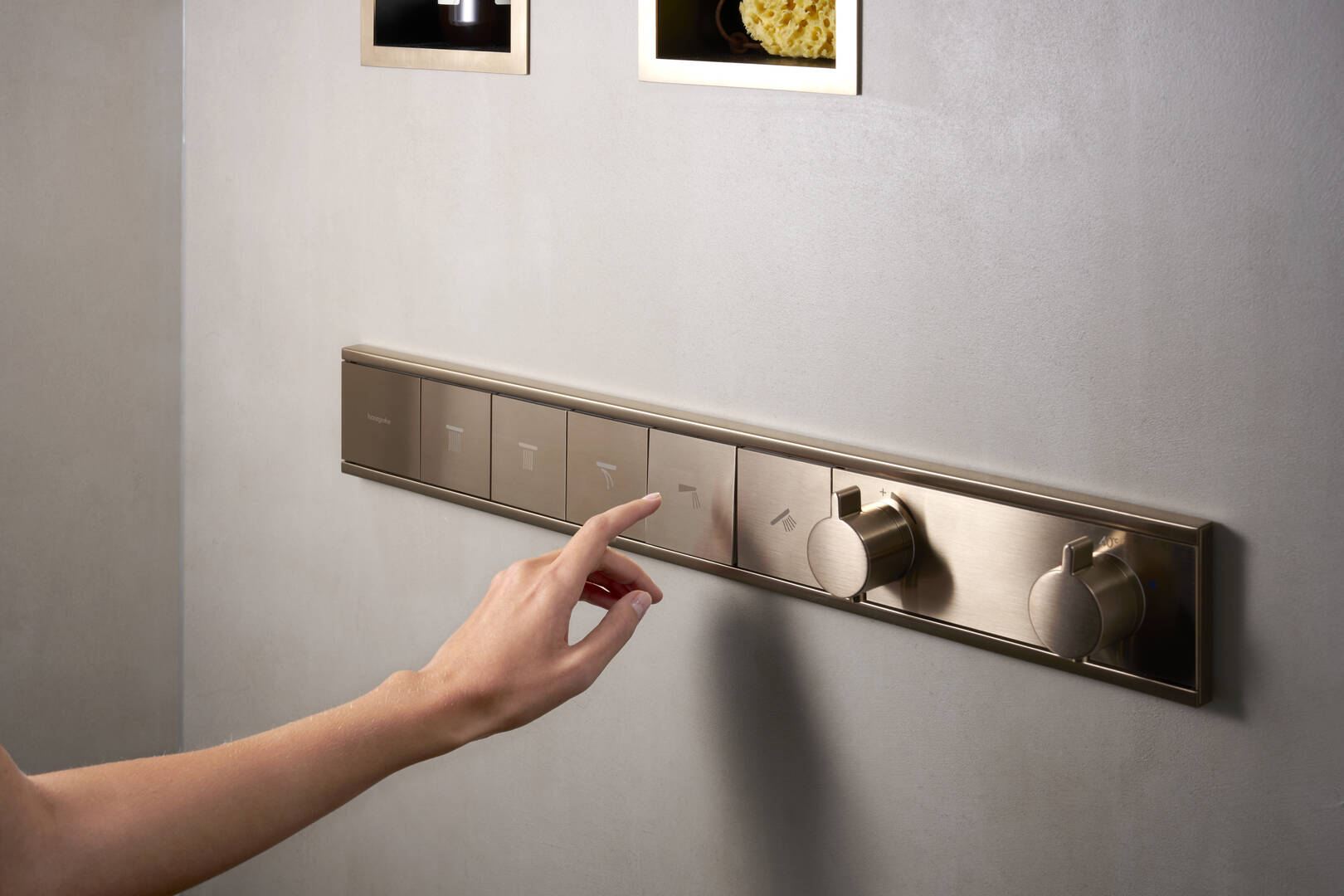

Close-up: Thermostat for concealed installation for 5 functions 1 Close-up: Thermostat for concealed installation for 5 functions 1
Close-up: Thermostat for concealed installation for 5 functions 2 Close-up: Thermostat for concealed installation for 5 functions 2
Close-up: Thermostat for concealed installation for 5 functions 3 Close-up: Thermostat for concealed installation for 5 functions 3
1 / 4
Change variant Thermostat for concealed installation for 5 functions

Select a variant

Finish Brushed Bronze

Art. no. 15384140

Find a specialist dealer
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the Product Comparison The product could not be saved.
Please try again.
Find a specialist dealer
RainSelect Thermostat for concealed installation for 5 functions

Why this product is special

With RainSelect thermostatic mixers, you can control your showering experience using large, flat Select buttons. The technology of this slimline control centre fits neatly into the wall. Make the switch – to the highest design standards.
  • Actively regulate water consumption - the amount of water can be adjusted using the control dial.
Flat RainSelect shower thermostat.
With the high-quality RainSelect design thermostat, you can take your showering pleasure to a new level.
Product Line RainSelect
Shower control with large buttons.
Flat, clean, intuitive to operate: With 70x70 millimeter Select switches, you can control up to five water sources at once.
Product Line RainSelect
Geometric RainSelect control panel in marbled shower.
The geometric design language of the control panel harmonizes particularly well with the Rainfinity shower line.
Product Line RainSelect
Thermostat with integrated shower support.
For everyone who loves streamlined design solutions: The integrated shower support holds the hand shower in place without the need for a wallbar.
Product Line RainSelect
Premium shower in white look.
“Meets high aesthetic standards,” is also the opinion of the Red Dot Award jury who chose RainSelect in 2017.
Product Line RainSelect
Free space in the shower with hansgrohe RainSelect.
RainSelect elegantly hides the control technology behind the wall, creating extra free space for you.
Product Line RainSelect

Innovative technologies

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Safety lock at over 40 °C

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Always constant water temperature

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
For mindful use of water

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

Intuitive jet adjustment

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Safety lock at over 40 °C

Safety lock at over 40 °C

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Always constant water temperature

Always constant water temperature

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

For mindful use of water

For mindful use of water

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

Our promise

We are at your side in the real and digital worlds when it comes to assistance, service, and guarantees.
Our Guarantee Services

Our Guarantee Services

In addition to the voluntary manufacturer’s guarantee, you can trust the multiple awards given for the high quality standards and durability of hansgrohe products.

Our Green Heart

Our Green Heart

Water is life, and our passion. Our sustainable product solutions combine water- and energy-efficient technologies and take responsibility for people, the environment, and our planet.

Our Service for You

Our Service for You

Whatever you have in mind, we are here to help and support you when it comes to assistance, service, guarantees, or spare parts. Feel free to contact us.

Trust in highest quality

Five-year manufacturer's guarantee

Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

Alternative products

Similar products

Thermostat for concealed installation for 2 functions with integrated shower holder

RainSelect Thermostat for concealed installation for 2 functions with integrated shower holder
Thermostat for concealed installation for 3 functions with integrated shower holder

RainSelect Thermostat for concealed installation for 3 functions with integrated shower holder
Thermostat for concealed installation for 4 functions with integrated shower holder

RainSelect Thermostat for concealed installation for 4 functions with integrated shower holder
Thermostat for concealed installation for 5 functions with integrated shower holder

RainSelect Thermostat for concealed installation for 5 functions with integrated shower holder
Thermostat for concealed installation for 2 functions

RainSelect Thermostat for concealed installation for 2 functions
Thermostat for concealed installation for 3 functions

RainSelect Thermostat for concealed installation for 3 functions
Thermostat for concealed installation for 4 functions

RainSelect Thermostat for concealed installation for 4 functions
Shower thermostat for exposed installation renovation

Ecostat Select Shower thermostat for exposed installation renovation
Shower thermostat for exposed installation HQ

Ecostat Comfort Shower thermostat for exposed installation HQ
Shower thermostat for exposed installation

Ecostat Comfort Shower thermostat for exposed installation
Shower thermostat Care for exposed installation with extra long handles

Ecostat Comfort Shower thermostat Care for exposed installation with extra long handles
Matching products

You may also like

Basic set for 2 functions

RainSelect Basic set for 2 functions
Basic set for 3 functions

RainSelect Basic set for 3 functions
Basic set for 4 functions

RainSelect Basic set for 4 functions
Basic set for 5 functions

RainSelect Basic set for 5 functions

Article features

  • 5 functions
  • simultaneous use of several outlets
  • Select push-button on/off control for 5 functions
  • depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
  • thermostat cartridge, Start/stop valve to operate the functions
  • flow rate of hand shower at 3 bar: 16,7 l/min
  • maximum flow rate at 1 bar: 7,8 l/min
  • flow rate per outlet: 26 l/min
  • flow rate by simultaneous use of all outlets: 38 l/min
  • maximum flow rate at 3 bar: 38 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • non-return valve
  • connection type: basic set
  • Thermostat is delivered with buttons handshower, PowderRain, Waterfall, Rain large, shoulder shower

Download area

Product data sheet (PDF)

Planning data

BIM data

Technical data

Instructions

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer
Spare part finder

We've got all the extra parts you'll ever need

Find spare parts

Required parts

Basic set for 5 functions

RainSelect Basic set for 5 functions

Scope of supply

  • Thermostat
  • function block
  • mounting material
  • assembly instruction
